/ EYW / Solid European Bar Pull, 10mm Diameter Stainless Steel

from $7.99

Style: EYW

Available in four different sizes, 4", 5", 10" and 12"; and in grade 304, SOLID stainless steel construction and finish only.

  • Modern and contemporary design.
  • 10mm (~3/8") diameter.
  • Make sure you are comparing to the right grade and quality. Our handles are constructed with Ultra Grade SS304 NO RUST Stainless Steel.
  • Extremely high quality finish and proven extended durability.
  • Easy finger reach. Easy to install. Easy to clean.
  • Individually packaged with screws.
  • The four different lengths (4", 5", 10" and 12") are approximation of the overall length. Please double check hole-to-hole size measurement for pull replacement and retrofitting into cabinets with pre-drilled holes.
  • Detailed measurements are listed at the bottom of this page.

OUR CHALLENGE: Check the weight of our pulls and compare them to our competitors. If they don't mention the weight, there's a reason why.  We do not sell those light weight, low quality pulls.

Size:

Style: EYW

Available in four different sizes, 4", 5", 10" and 12"; and in grade 304, SOLID stainless steel construction and finish only.

  • Modern and contemporary design.
  • 10mm (~3/8") diameter.
  • Make sure you are comparing to the right grade and quality. Our handles are constructed with Ultra Grade SS304 NO RUST Stainless Steel.
  • Extremely high quality finish and proven extended durability.
  • Easy finger reach. Easy to install. Easy to clean.
  • Individually packaged with screws.
  • The four different lengths (4", 5", 10" and 12") are approximation of the overall length. Please double check hole-to-hole size measurement for pull replacement and retrofitting into cabinets with pre-drilled holes.
  • Detailed measurements are listed at the bottom of this page.

OUR CHALLENGE: Check the weight of our pulls and compare them to our competitors. If they don't mention the weight, there's a reason why.  We do not sell those light weight, low quality pulls.

Buy from Amazon.com


5" Size  |  Model #EYW-CX96-E4



10" Size  |  Model #EYW-F192-E4



12" Size  |  Model #EYW-G3XX-E4

** The 5", 10", and 12" lengths are shown with #MIA pulls, which are similar in design but are thicker than #EYW pulls


Buy from Amazon.com


Note

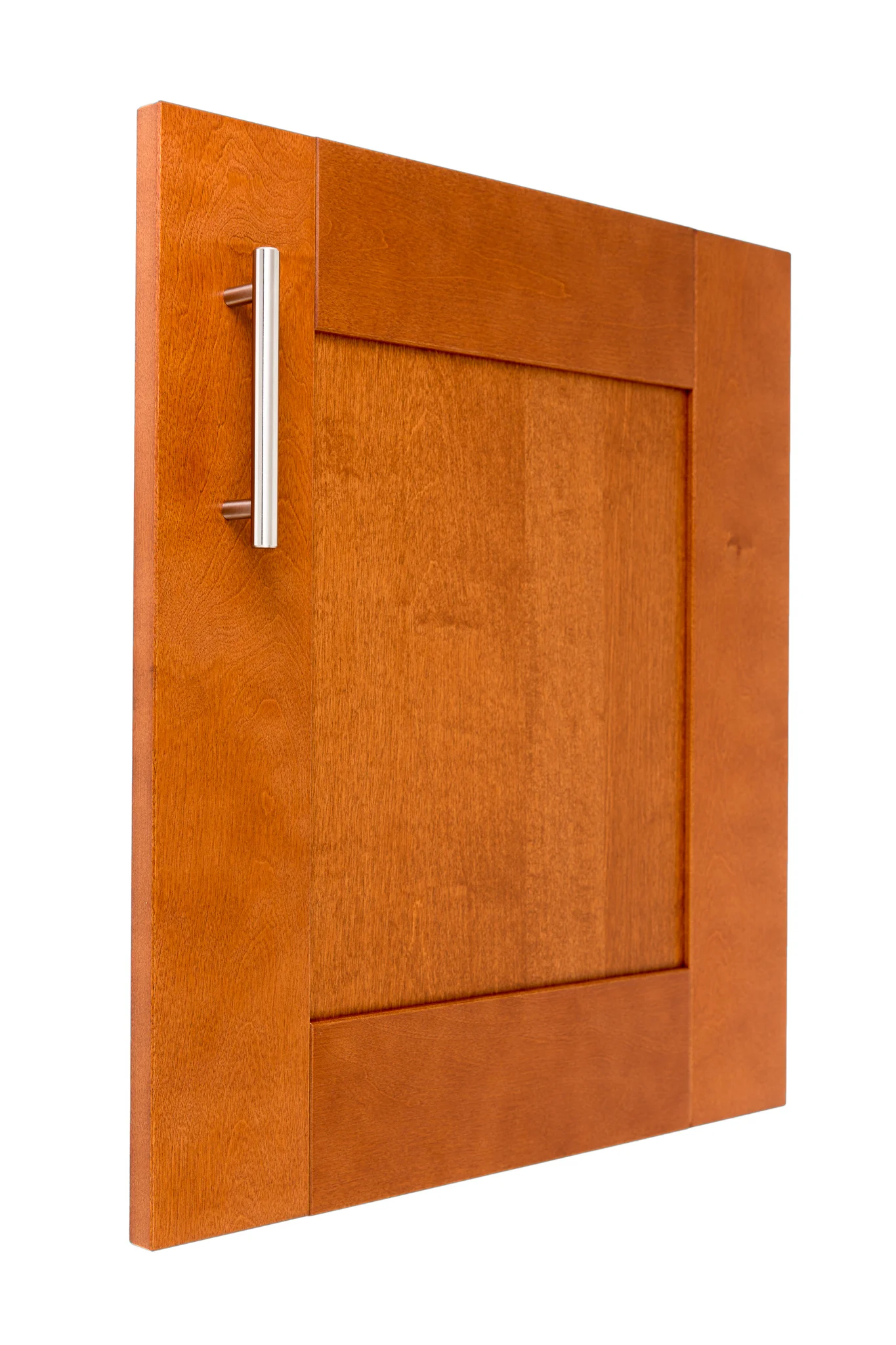

We used a small variety of 18" x 20" (460mm x 510mm) cabinet door fronts to showcase how our hardware would complement the different cabinetry finishes. For the purpose of demonstration on the overall appearance of #EYW pulls, the photos in the lower half of this page with the cabinet door fronts were shown with the corresponding sizes of #MIA pulls, which have a thicker diameter than #EYW pulls. Although we strive to demonstrate the truest form and colors of our hardware through controlled studio lighting, the photos from our website may or may not display the colors accurately depending on the calibration of colors on your monitor. We highly recommend the purchase of sample(s) to ensure our hardware can be appreciated not just by sight, but also by touch.



Product Details:


4" Size  |  Model #EYW-BX64-E4:
Length 100mm (3-15/16 in)
Diameter of base 008mm (5/16 in)
Diameter of center part of handle 010mm (3/8 in)
Projection 029mm (1-1/8 in)
Hole-to-hole 064mm (2-1/2 in)
Finger Space below bar 020mm (13/16 in)

Net Weight: 74g (2.6 oz)



5" Size  |  Model #EYW-CX96-E4:
Length 132mm (5-3/16 in)
Diameter of base 008mm (5/16 in)
Diameter of center part of handle 010mm (3/8 in)
Projection 029mm (1-1/8 in)
Hole-to-hole 096mm (3-13/16 in)
Finger Space below bar 020mm (13/16 in)

Net Weight: 102g (3.6 oz)



10" Size  |  Model #EYW-F192-E4:
Length 246mm (9-11/16 in)
Diameter of base 008mm (5/16 in)
Diameter of center part of handle 010mm (3/8 in)
Projection 029mm (1-1/8 in)
Hole-to-hole 192mm (7-9/16 in)
Finger Space below bar 020mm (13/16 in)

Net Weight: 173g (6.1 oz)



12" Size  |  Model #EYW-G3XX-E4:
Length 300mm (11-3/4 in)
Diameter of base 008mm (5/16 in)
Diameter of center part of handle 010mm (3/8 in)
Projection 029mm (1-1/8 in)
Hole-to-hole 225mm (8-13/16 in)
Finger Space below bar 020mm (13/16 in)

Net Weight: 207g (7.3 oz)
